4K 1080p HDMI to USB 2.0 Capture Card With Loop For Game Video Live Streaming Teaching Recording Capture Card

1080p hdmi to usb 2.0 capture card with loop for game video live streaming teaching recording medical capture card 4k

Product Introduction:

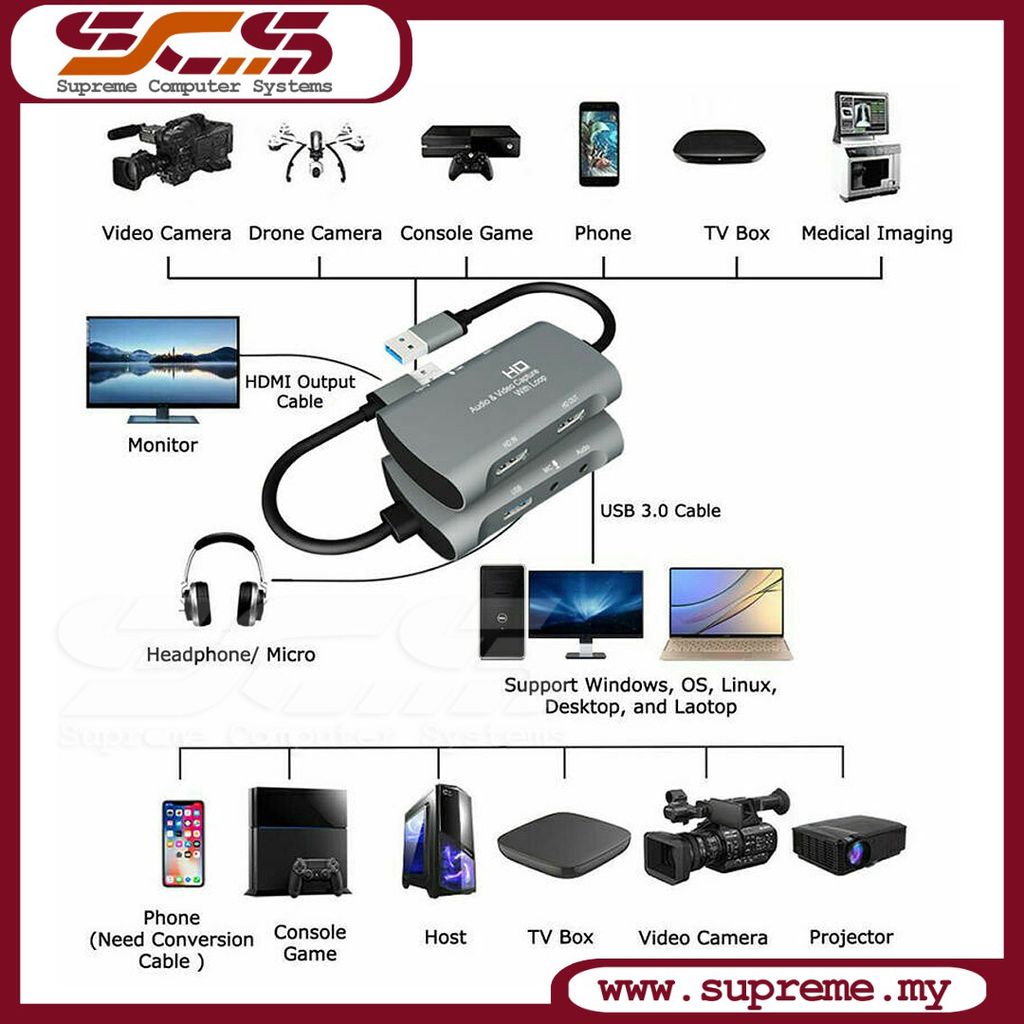

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc .;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specifications;
* Conforms to USB audio UAC specifications;
* No external power supply is required, so it is compact and easy to carry.

Product Specifications:

* HDMI Resolution: Max input can support 3840×[email protected] / 4K

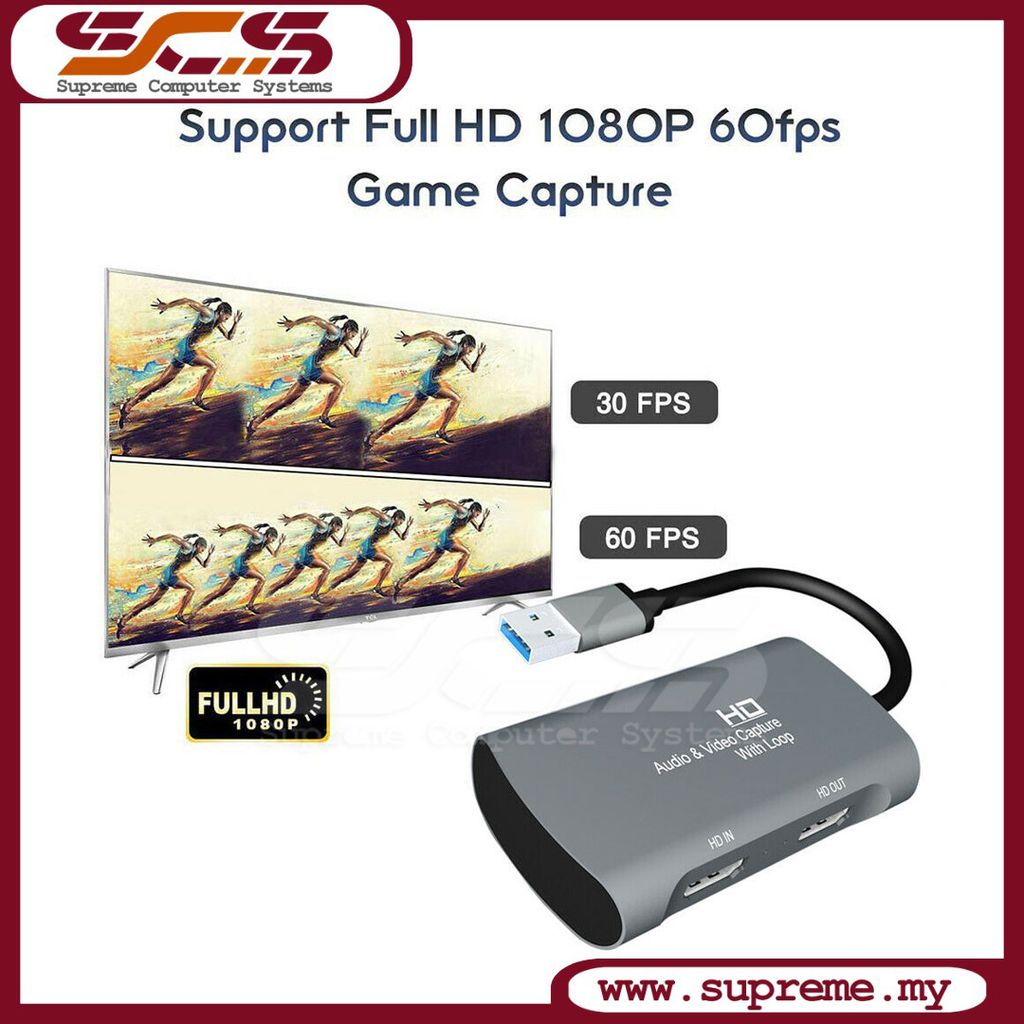

* Video Output Resolution: Max output can be 1920×[email protected]
* Video Input Format: 8 / 10 / 12-bit Deep Color
* Video Output Mode: YUV / JPEG
* Support Audio Format: L-PCM
* Support AWG26 HDMI Standard Cable: input ≤15 meters, AWG26 HDMI standard cable.
* Maximum Working Current: 0.4A / 5VDC
* Operating temperature range: (-10 to + 55 ℃)
* Dimension (L x W x H): 64x28x13 (mm)
* Weight: 35g
